Carretilla todoterreno Dragon Loader CPCD30 Diésel nueva

3.0T Rough Terrain Forklift Truck
3.0T rough terrain forklift truck, 3000kg rough terrain forklifts, 3.0T rough terrain forklift truck, 3000kg rough terrain forklifts, rough terrain forklift capacity 3.0T, 3.0T capacity off-road forklift truck, rough terrain forklift capacity 3.0T, 3.0T capacity off-road forklift truck, 3000kg capacity cross-country forklifts, off-road forklift truck capacity 3000kg, 3000kg capacity cross-country forklifts, off-road forklift truck capacity 3000kg, cross-country forklift truck capacity 3.0T, 3000kg capacity off-road forklift truck, rough terrain fork lift, rough terrain fork lifts, 3 ton rough terrain fork lift, 3.0 ton rough terrain fork lift truck, 3 tonne rough terrain forklift

Main features:
1. A larger ground clearance of the chassis enables the rough terrain forklift truck to overcome many kinds of complex terrain;
2. The off-road mobility is enhanced through by driver wheels with the MPT multi-function tires, wide base and cross-country tread pattern;
3. Uses the integral-type combination instruments, the fuse box places in left side of the steering wheel to make it easy to replace. The rough terrain forklift truck is also installed with a cigar lighter;
4. A yellow caution light. Outlay air filter and inside air filter increase the purification performance greatly;
5. Adopting Xinchang A498 Engine to ensure the powerful performance;
6. Adjustable damping seat with safety belt.

Technical Specifications:
Power Type: Diesel
Rated Load Capacity: 3000kg
Load Center: 500mm
Standard Lifting Height: 3300mm
Mast Tilt Angle (Forward/Backward): 10/12deg.
Front Overhang: 600mm
Wheelbase: 1850mm
Wheel Tread (Front/Rear): 1350/1290mm
Service Brake: Hydraulic-Foot Pedal
Parking brake: Mechanical-Hand Lever
Lifting Speed (Full-load/No-load): 380 / 520mm/s
Lowering Speed (Full-load/No-load): Full-load 300mm/s
Travel Speed (Full-load/No-load): 20 / 25km/h
Max. Gradeability (No-load): 20%
Engine Model: XINCHANG A498BPG
Rated Power of Engine: 45kW / 2500rpm
Max. Torque/rpm of Engine: 193Nm / 1800rpm
Displacement of Engine: 3.168L
Battery Voltage: 12V
Battery Capacity: 100Ah
Transmission Type of Gearbox: Hydraulic
Gears Shift (F/R) of Gearbox: I/I
Tyre Type: Pneumatic Tyres
Tyre Model - Front: 14-17.5-14PR
Tyre Model - Rear: 10-16.5-10PR
Service Weight: 4600kg
Free Lift: 120mm
Fork Dimensions (TxWxL): 40x125x1070mm
Overall Length (without Forks): 2930mm
Overall Width: 1800mm
Overall Height - Mast Extended: 4650mm
Overall Height - Mast Lowered: 2342mm
Height - Overhead Guard: 2452mm
Min. Turning Radius: 3050mm
Min. Ground Clearance - Below Mast: 220mm

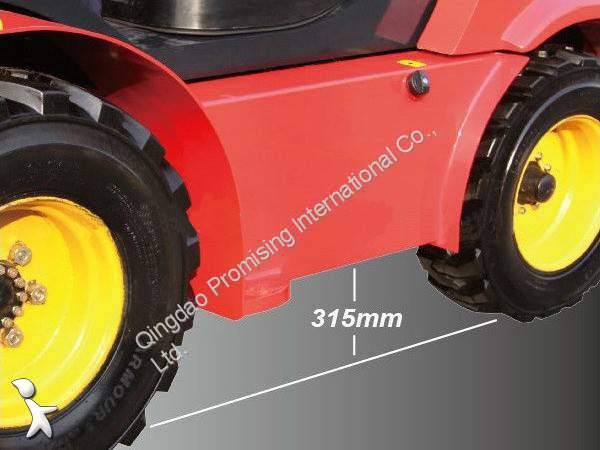

Min. Ground Clearance - Center of Wheelbase: 315mm

Optional Engine:
Model: 4JG2
Manufacturer: ISUZU
Rated Power: 44.9Kw / 2450rpm
Max. Torque: 186 N.m /1800rpm
Displacement: 3.059L

Note:
1. Technical specifications are for standard models only.
2. Other optional accessories, functions and requirements are available upon request.
3. All specifications and design characteristics are subject to change without prior notice.
